How to call an AAD protected Azure Function

Once you have protected an Azure Function using AAD (Azure Active Directory) , these instructions allow you to securely call it from another process (e.g. Console App, Azure Function, etc).

To successfully call an Azure AD protected function using client credentials flow, you’ll need 4 things:

  • Tenant ID
  • Application ID
  • Client Secret
  • Application ID Url

Step 1: Tenant ID

To retrieve the tenant ID, navigate to Azure Active Directory. Record down the Tenant ID for future use.

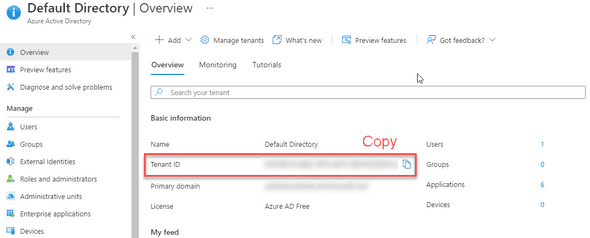

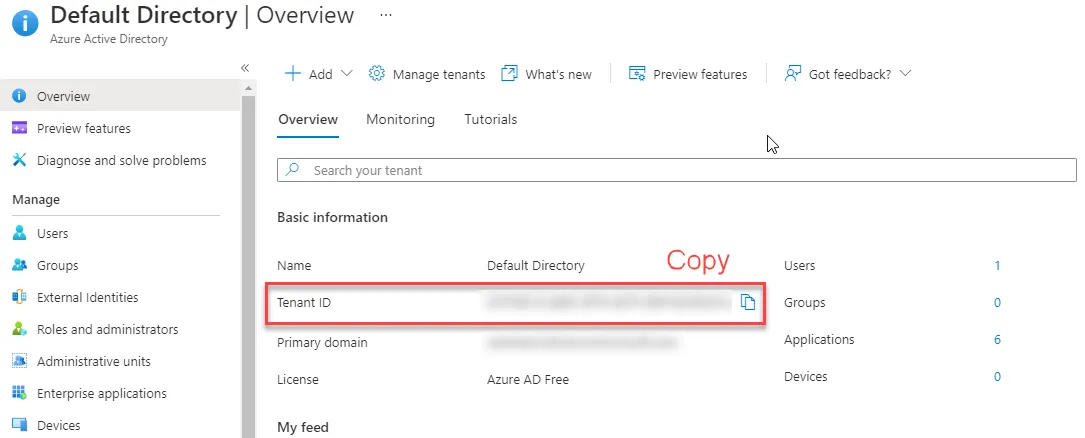

Step 1: Retrieve Tenant ID from Azure Active Directory

Step 2: Retrieve Application ID

Next, navigate to your secured Azure Function and look at the Authentication blade to retrieve the Application Name.

In the below screenshot, the application name is myaadapp. Record down your application name for future use.

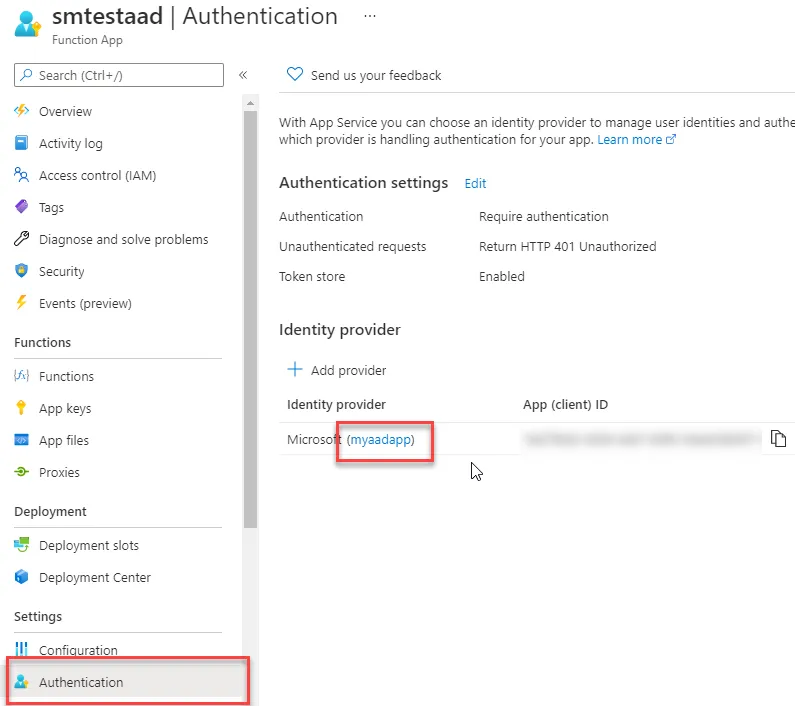

Step 1: Retrive application name from Azure Function

Navigate to Azure Active Directory -> App Registrations and click on the application name you just recorded.

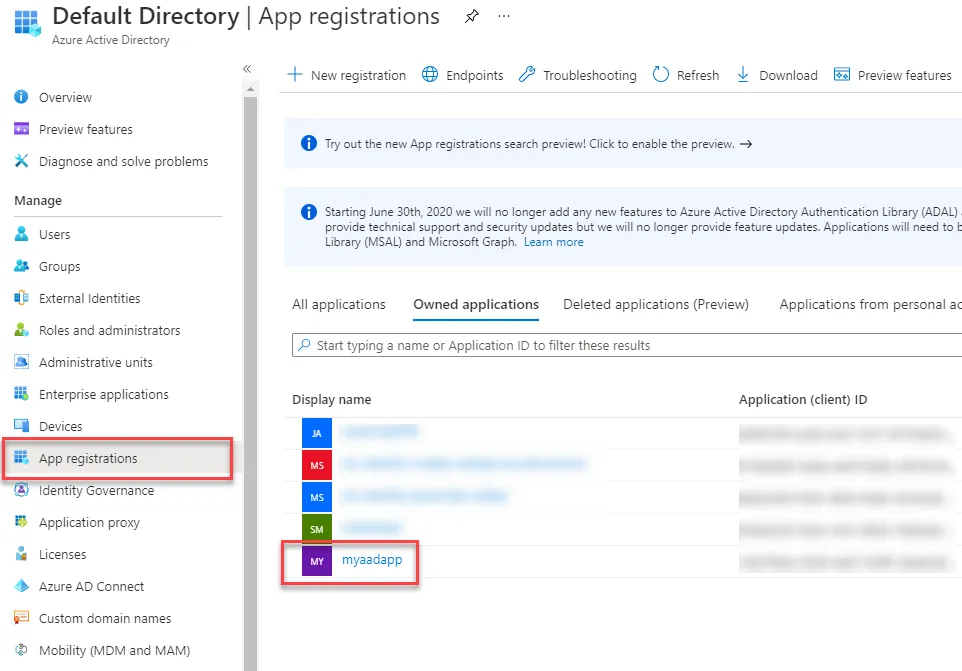

Step 2: App navigation

In the application overview, take note of the Application ID (you’ll use it later).

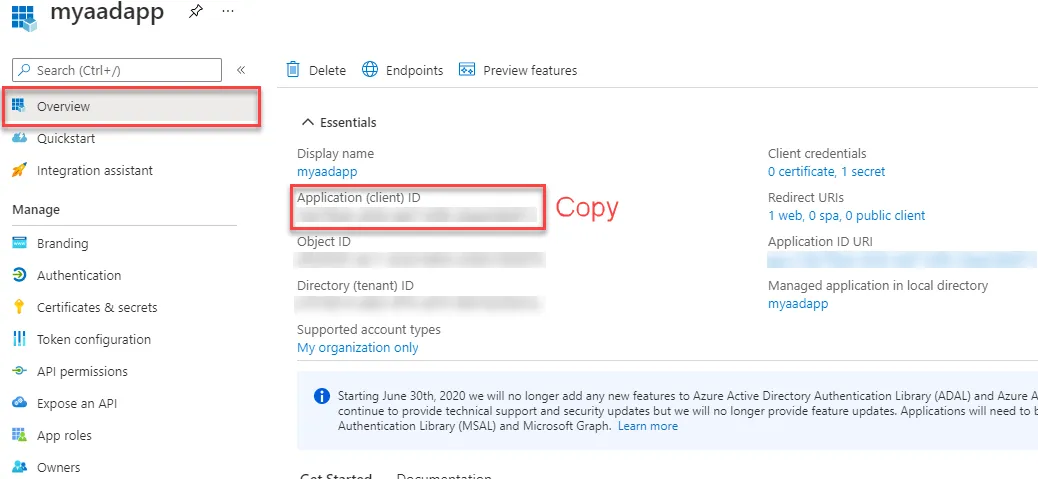

Step 2: App ID

Step 3: Create Client Secret

While still in the application from step 2, navigate to Certificates & secrets. Click New client secret, specify description (optional) and an expiry.

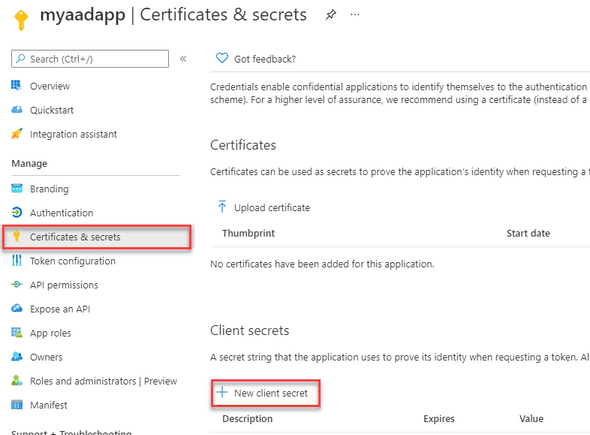

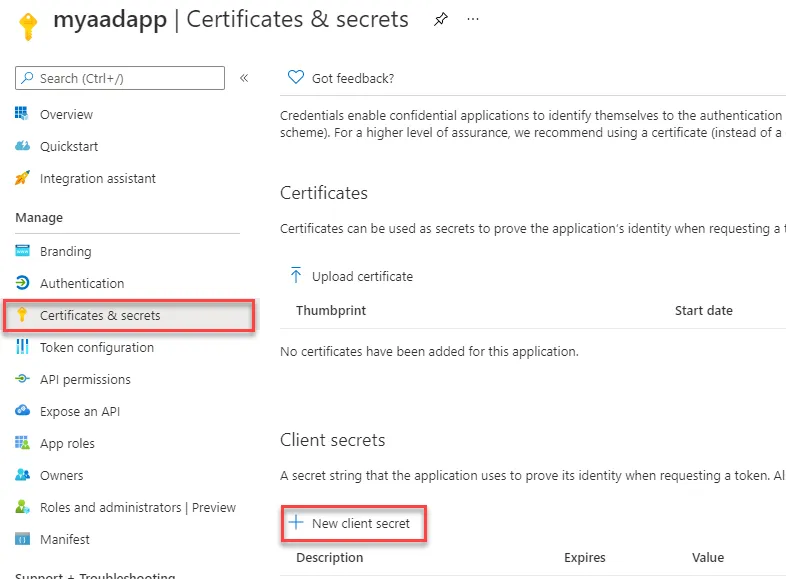

Step 3: Client Secret

Record down the generated secret for future use.

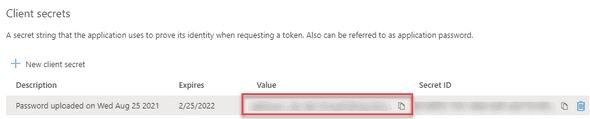

Step 3: Client Secret Generated

Note: these secrets will expire and need to be regularly renewed (based on the expiry length you selected).

Step 4: Get Application ID Url

While still in the application from step 2, navigate to Expose an API. Copy the Application ID URI and record it for future use.

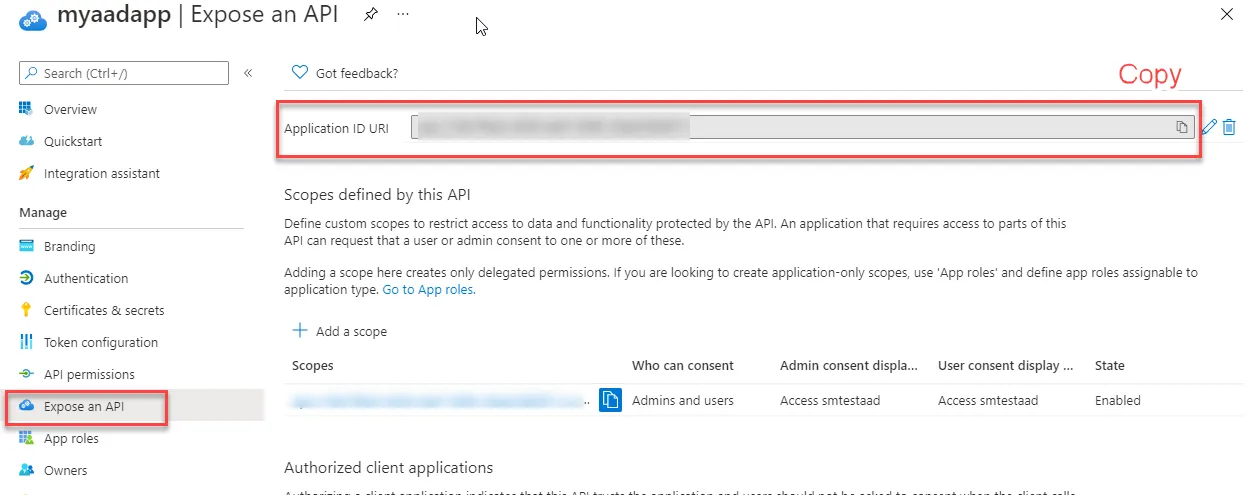

Step 4: Retrieve APP ID Uri

Step 5: Call Azure AD to retrieve access token

In the application you have built (e.g. Console App, Azure Function, etc). You need to call Azure Active Directory to retrieve an Access Token.

Use the settings you recorded in previous steps to populate the call below.

POST /<your tenant id>/oauth2/token HTTP/1.1
Host: login.microsoftonline.com
Content-Type: application/x-www-form-urlencoded

grant_type=client_credentials
&client_id=<your application id>
&client_secret=<your client secret>
&resource=<your application id url>

Step 6: Call Azure Function

Once you have your token, attached the “Authorization” header with a value of:

Bearer <access token>

For example:

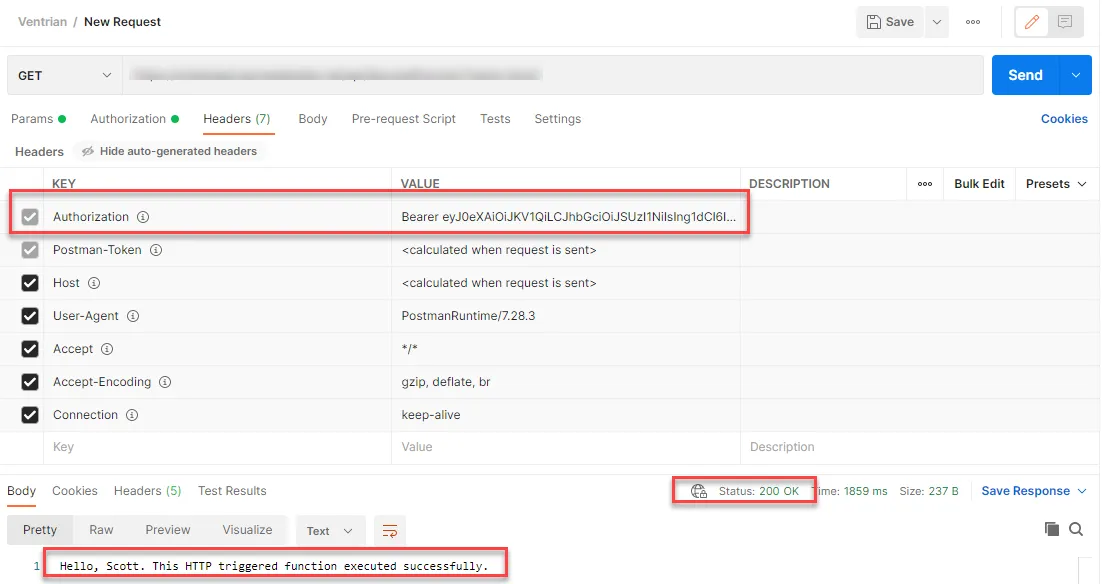

Step 6: Call Azure Function
