How to monitor Windows Service in Azure VM

The requirement is to track a Windows Service running on a Virtual Machine on Azure. When the service was stopped (or crashed), generate an alert to the support team.

Prerequisites

You will need a Log Analytics Workspace and Automation service to store configuration and generate alerts.

Step 1: Enable VM Inventory and Change Tracking

This feature monitors the Virtual Machine for changes in software, files, windows registry and windows services.

  1. On the desired Virtual Machine in the Azure Portal, select Inventory under Configuration Management.

  2. Select your Log Analytics Workspace and Automation Account, then click Enable.

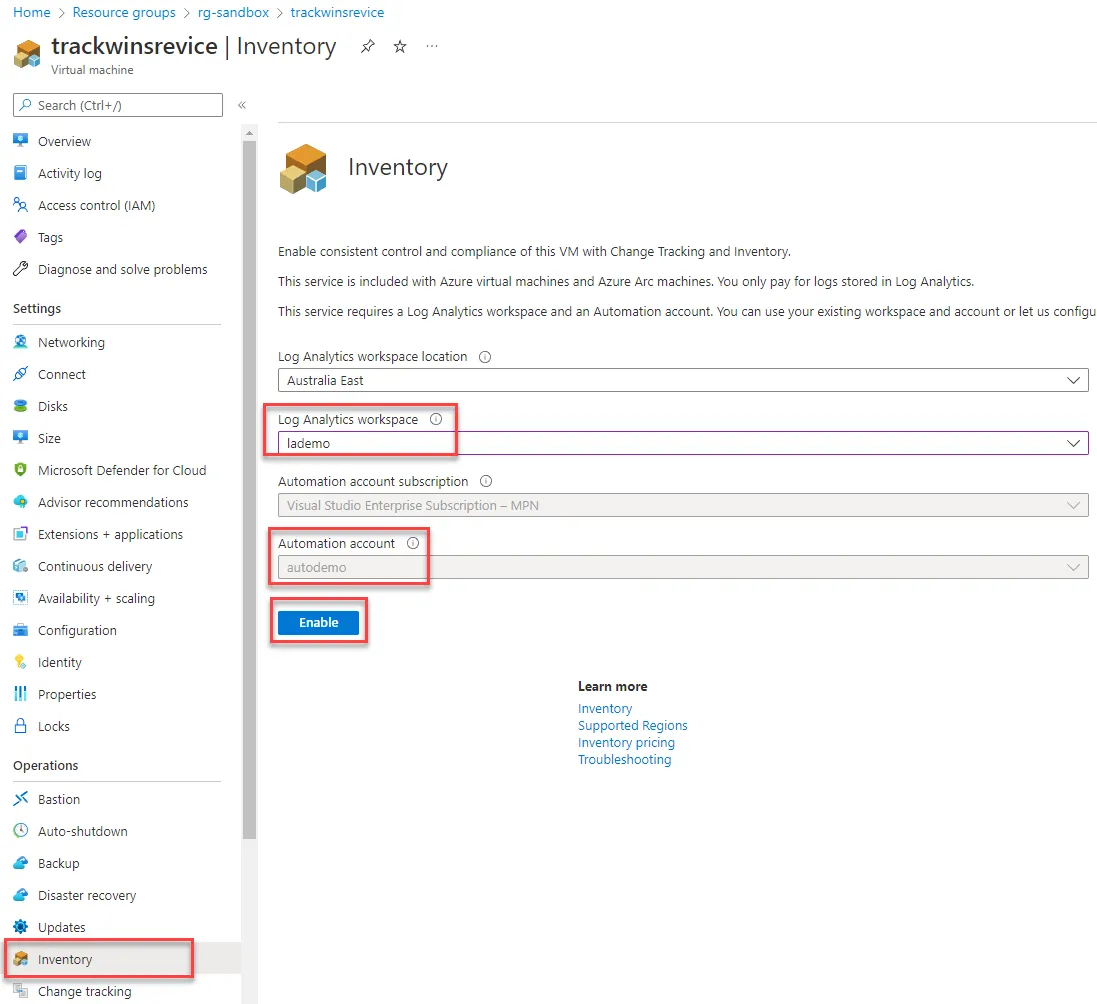

Enable inventory and tracking in Azure

This will allow Azure to collect inventory on your virtual machine and monitor for changes.

Note: on my account, it took a few hours for all windows services to show up.

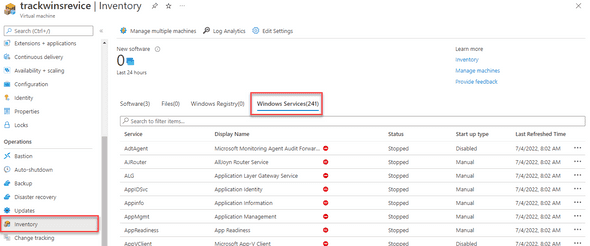

When fully configured, the Inventory will show a tab with all Windows Services and their current state:

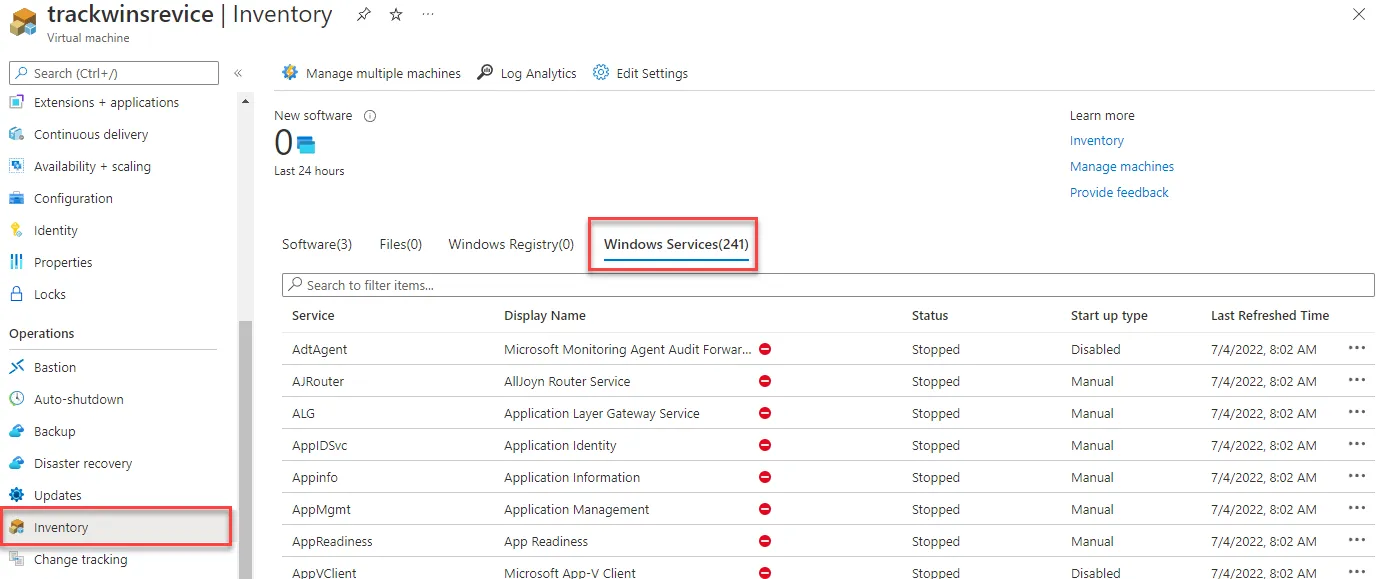

Window Services tracking - Virtual Machines

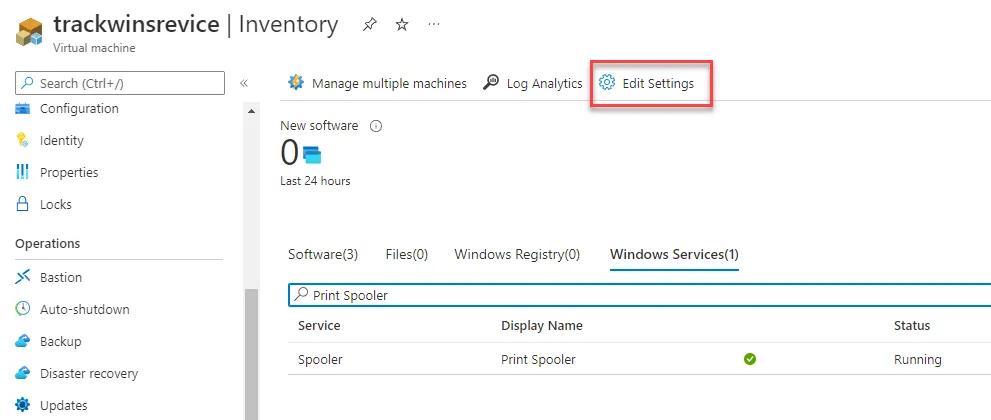

The default collection of windows service states are 30 minutes. This might be too slow for monitoring purposes. You can change this value in Edit Settings:

Window Services tracking - Edit Settings

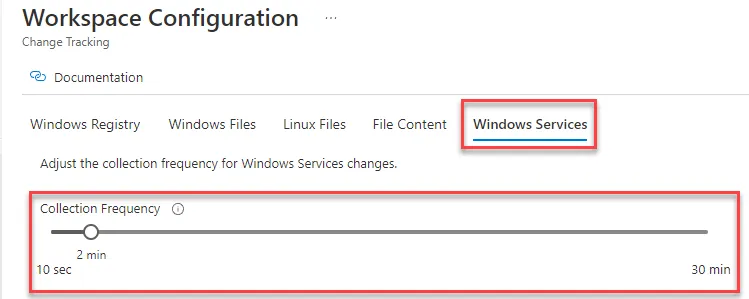

Navigate to Windows Services tab and change the collection frequency to a smaller number (e.g. 2 minutes):

Window Services tracking - Collection Settings

Step 2: Configure Alert

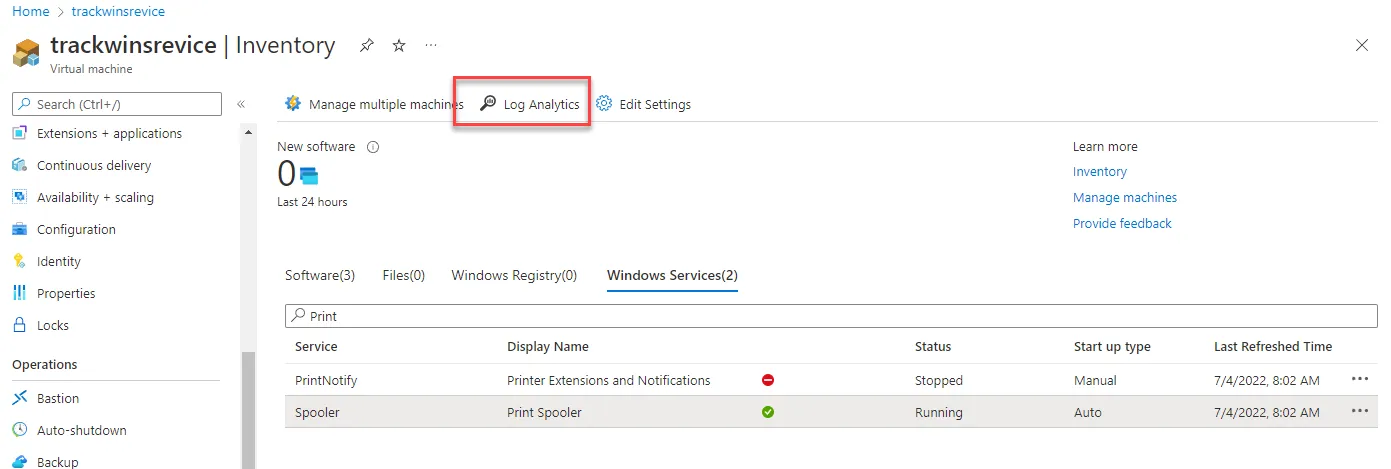

Now that services are showing, we can setup an alert in Log Analytics to monitor the Print Spooler service.

Log Analytics

Modify the query to look for Print Spooler and a corresponding Stopped event.

ConfigurationData
| where ConfigDataType == "WindowsServices" and SvcDisplayName == "Print Spooler" and SvcState == "Stopped"
| order by TimeGenerated desc

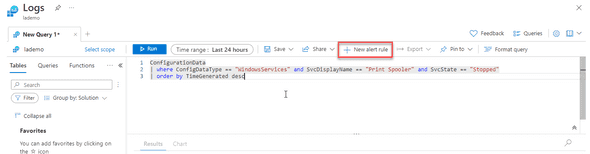

Select + New alert rule to use this query as the alert:

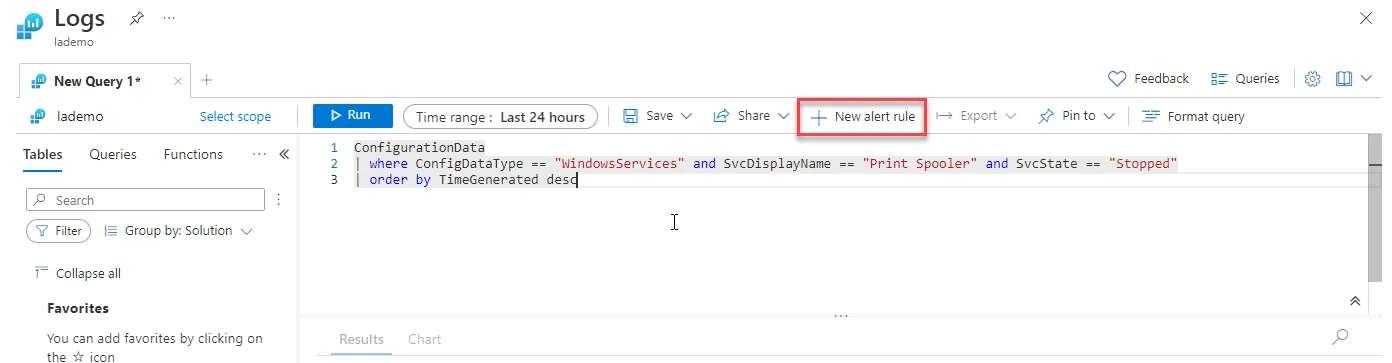

New Alert Rule - Log Analytics

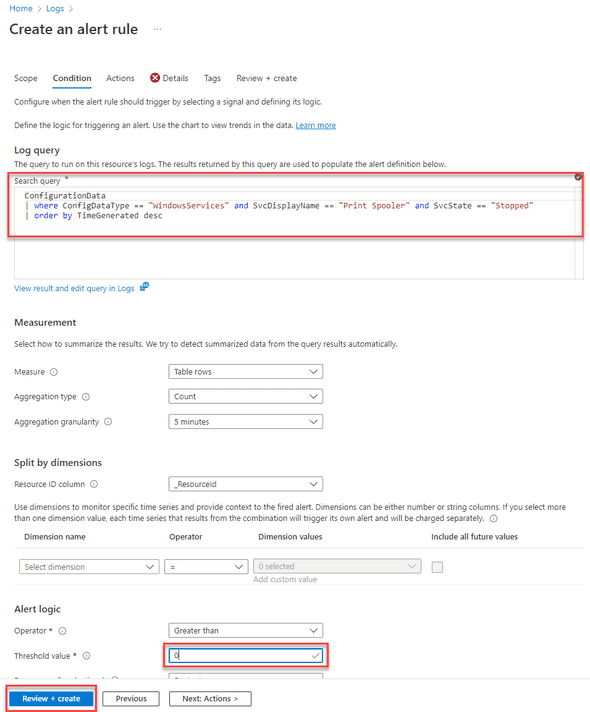

The rule engine will use this query as the signal and you can specify how often it checks:

  • Set a threshold value to 0.

Azure will evaluate this query every 5 minutes and will trigger on 1 or more change events.

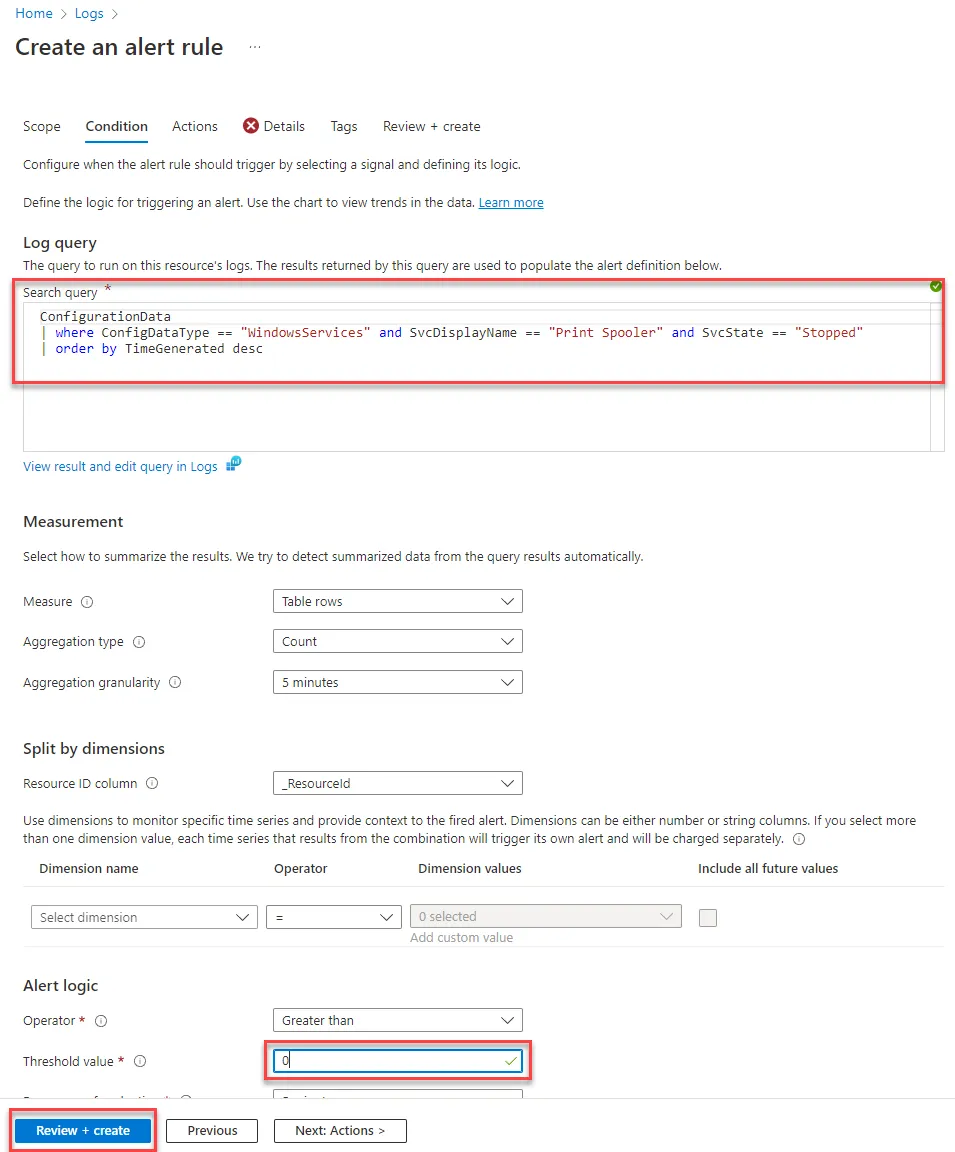

Alert Rule

  • Navigate to Actions
  • Specify an existing Action Group or create a new one. My action group sends an email to myself.

This is a list of people/services to notify when the alert triggers.

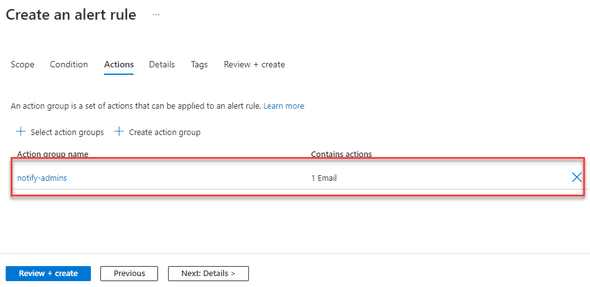

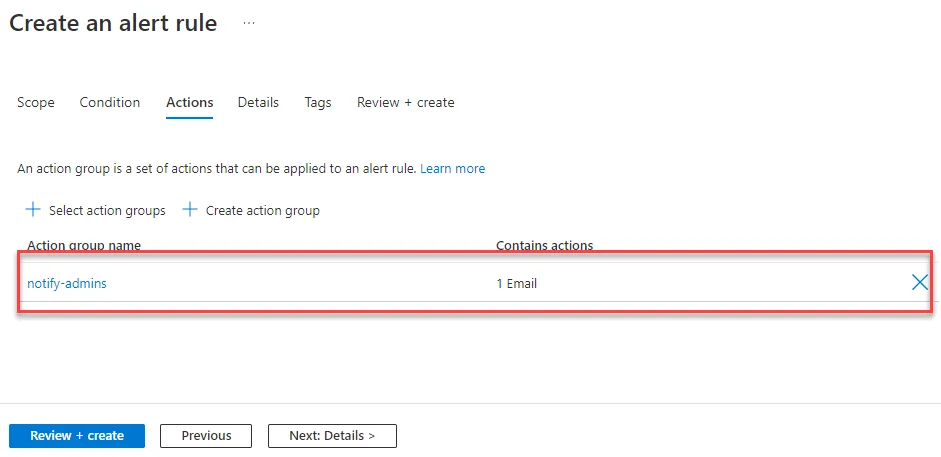

Alert Rule Action

  • Navigate to Details.
  • Give your alert an Alert Rule Name and Severity.

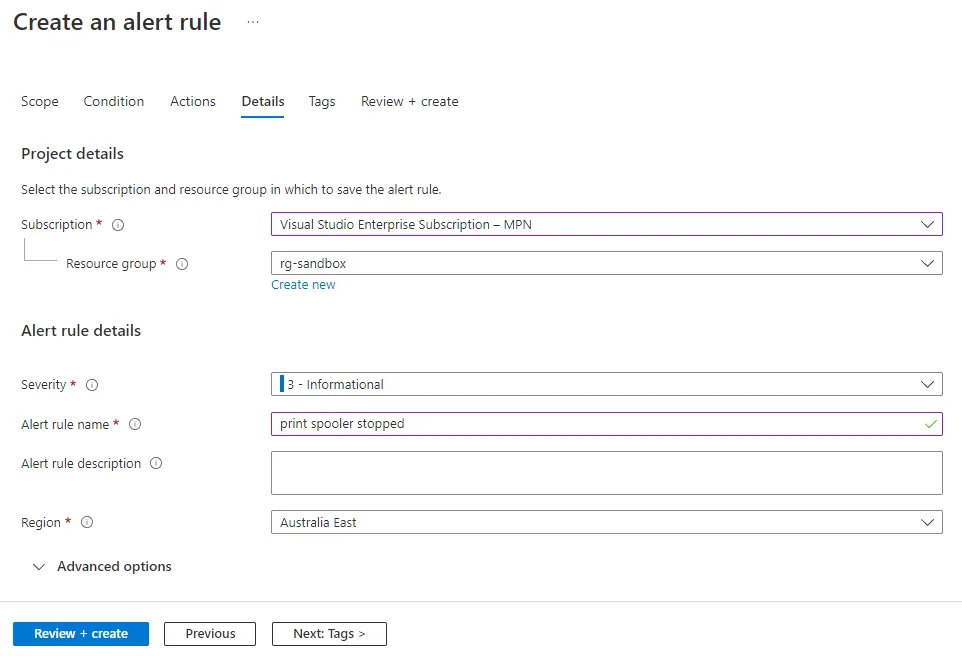

Alert Rule Details

  • Review + Create to complete the alert setup.

Step 3: Testing the Alert

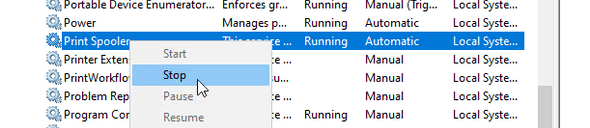

RDP into your server and stop the Print Spooler service.

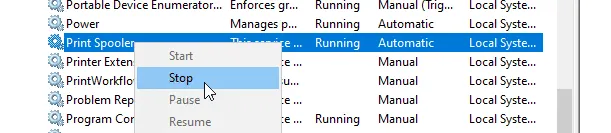

Stop Service

Once the service has stopped, you should receive a notification within the next 5 minutes stating the service has stopped.

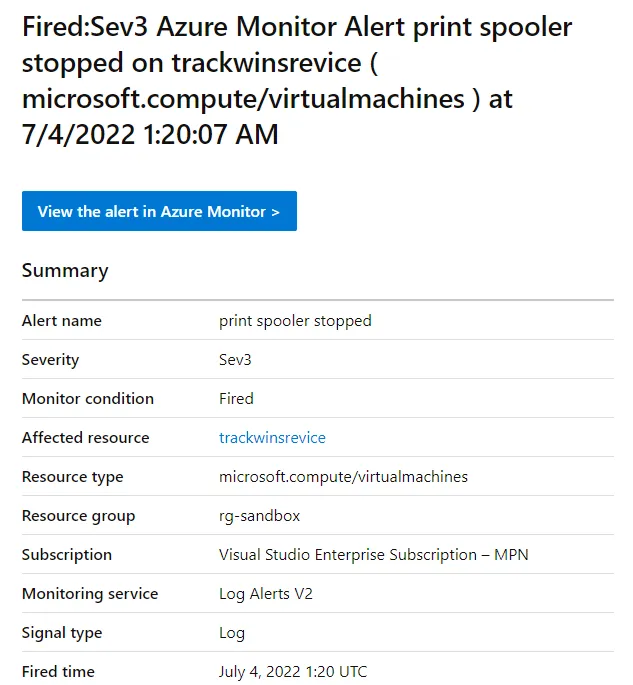

Alert Detail
